EN71 Toys Comprehensive Flammability Test Equipment for Children Clothing Toys Burning Test
Purpose of equipment
used for testing the flammbility of toys,children clothes,evalute the following toys flammability speed,time.
Testing the child clothing or the toy and accessories s flammability , appraises the following toy type the repidity of the flammability and time
Technical specifications
1, Ignition time set range:0~99.99S Precision:0.01S
2, continue burning time range :0-999.9S precision0.1S
3, Please put this flammability into a cabinet to make test.
4, Ignition mouth size: applies to IS0 6941 standard.
5, Dimension of specimen: 150mmX560mm
6, Power: AC200V 50Hz
7. Weight:40KG
8. Gas: butane gas.
9. Mercerized Marker Thread: white cotton thread, density＞50
Gas and Flame Lighte (but could not be sent as the forbidden goods)
Feature:
1. The PLC control, the time is accurate, Chinese man-machine contact surface
2. The different test method provides different sample jig
3. clamps are easy to operated
4. The jig may adjust willfully, suits different sample
Standards:
16 CFR 1500.49, ASTM F963 4.8, EN71-1 2014 8.11, GB 6675-2003 A.5.9
Standard Configuration:
Toys Comprehensive Flammability Tester 1 pcs
Powercord 1 pcs
Burning units 1 pcs
Butane gas 1 bottle
Cotton thread 1 roll
Fixture 1 set
Fix clamp 3 pcs
Plug 4 pcs
Flame caliper 2 pcs
Burning torch 1 pcs
Weights 2 pcs
Operating manual 1 brochure
Service and Support
Our company focuses on research and development , we were produced some intelligent testing equipments over thirteen years, we continue to provide stable performance, high-quality equipment for product quality testing industry.At present, the company has 14 utility model patent technologies,2 patents for invention and participated in the drafting and formulation of nine national standards.
In cooperation we has a variety of testing units, industries, association partners and friends, accumulated a large number of detection industry insights and contacts, for those friends who just come into testing industry, we can learn from each other to communicate, explore the problems and difficulties encountered in testing.
Product Tags:
|
|

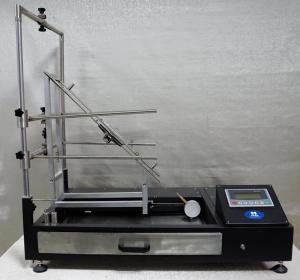

TW-226 EN71-2 ISO 8124 Test Toys Flammability Testing Equipment Images
|
